Wall Washers

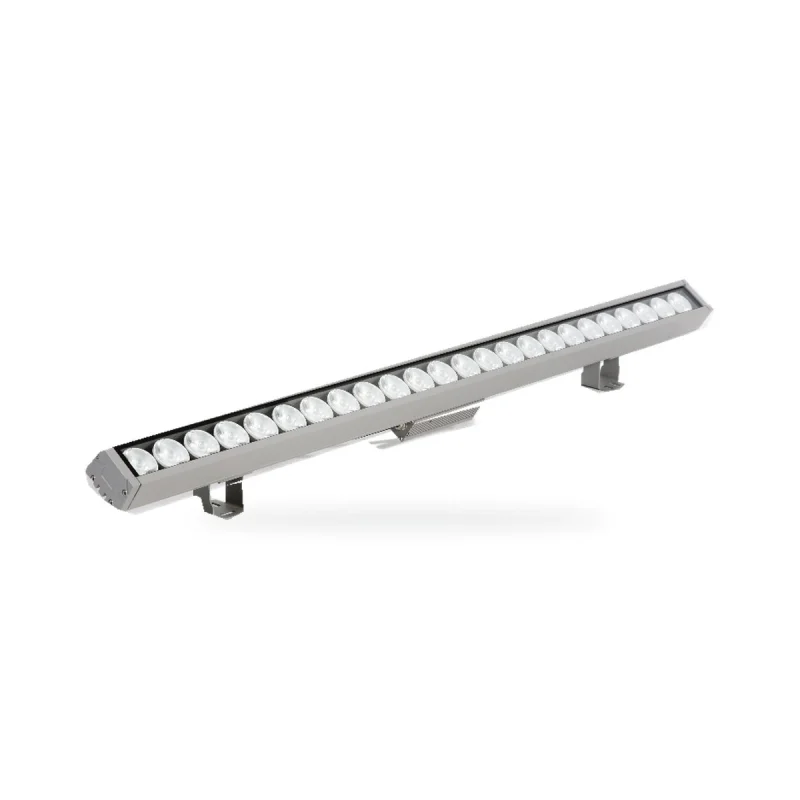

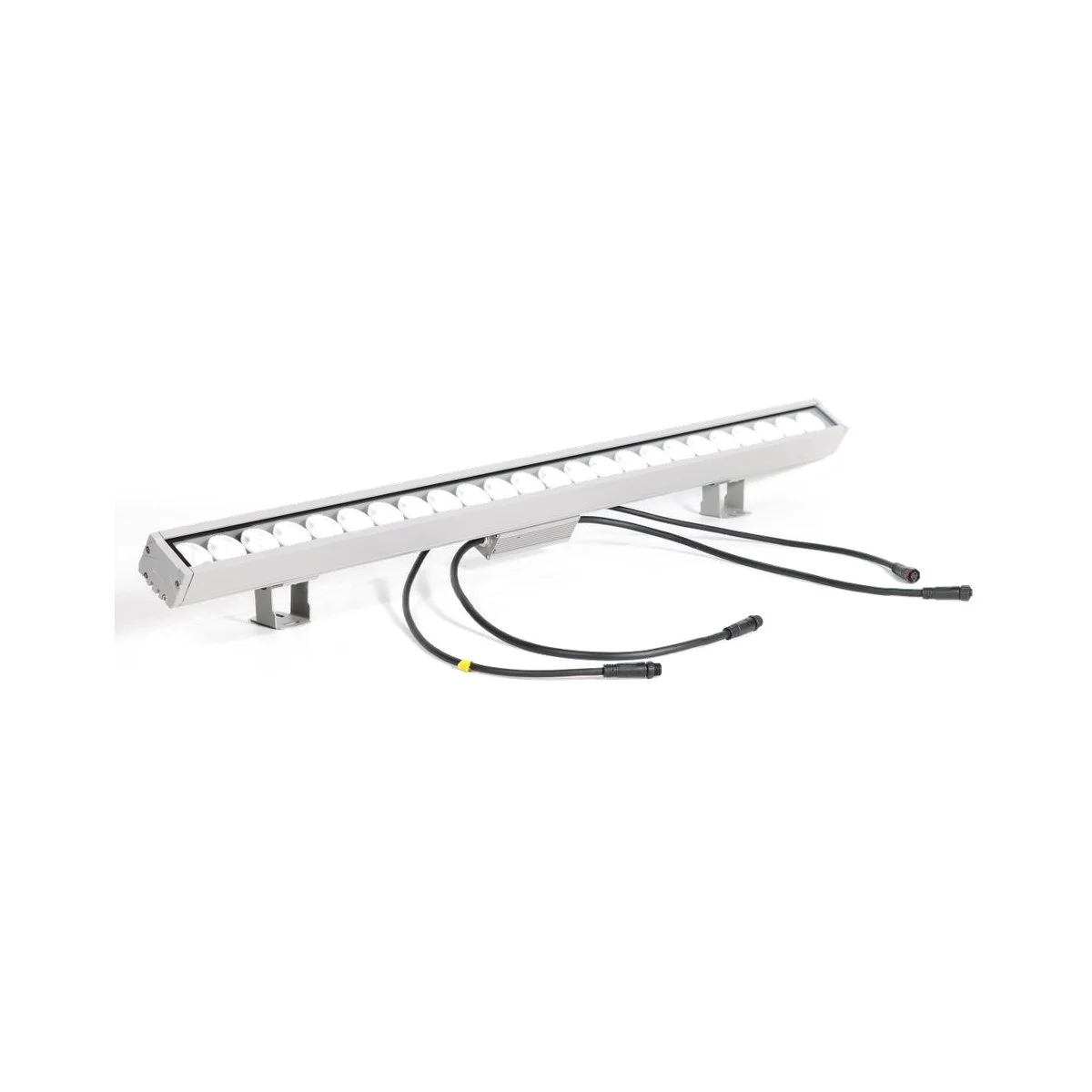

WW-L24
Linear wall washer
A slim aluminium wall washer with precision optics for smooth, even facade lighting. Static white or full colour, with DMX512 or SPI control.
- Power12–36 W
- ProtectionIP66
- ControlDMX512 / SPI
- Warranty5 years
Length / power
Light colour
Beam angle
Order codeWW-L24-1024-RGBW-30
MOQ 20 pcs · Samples in 3–7 days · Custom lengths available
Overview
Precise optics
Secondary lenses from 10° to 10°×60° wash walls up to 30 m high without hot spots.
Full control
DMX512 with RDM or SPI. Addresses can be preset at the factory to match your drawings.
Built for outdoors
IP66 housing in 6063 aluminium and tempered glass, salt-spray tested for coastal sites.
Specifications
| Power | 12 / 18 / 24 / 36 W |
|---|---|

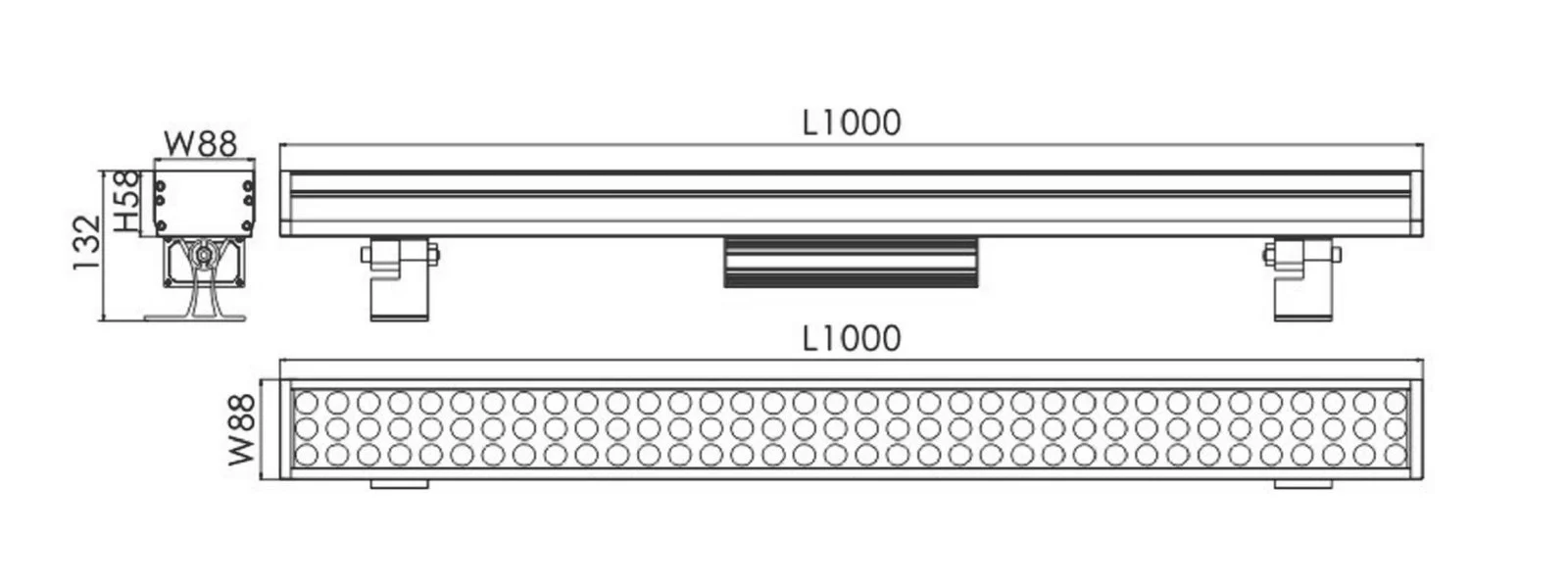

| Length | 500 / 1000 / 1200 mm |
| Light source | High-power LEDs, 1 W per LED |
| Colour | 2700–6500K, RGB, RGBW |
| CRI | > 80 |
| Beam angle | 10°, 15°, 30°, 45°, 10°×60° |
| Control | Built-in program, DMX512 (RDM), SPI |
| Input voltage | DC 24 V |
| IP / IK rating | IP66 / IK08 |
| Housing | 6063 aluminium, tempered glass |
| Operating temperature | −30 °C to +50 °C |
| Lifetime | > 50,000 h (L70) |
| Certification | CE, RoHS, ETL |
| Warranty | 5 years |
Versions
| Code | Length | Power | LEDs | Weight |
|---|---|---|---|---|
| WW-L24-0512 | 500 mm | 12 W | 12 | 0.9 kg |
| WW-L24-1018 | 1000 mm | 18 W | 18 | 1.6 kg |
| WW-L24-1024 | 1000 mm | 24 W | 24 | 1.7 kg |
| WW-L24-1236 | 1200 mm | 36 W | 36 | 2.1 kg |
Accessories
| Code | Accessory | Description |
|---|---|---|
| WW-AG | Glare shield | Cuts glare towards pedestrians on low mounting. |
| WW-BR150 | Extended bracket | 150 mm offset, adjustable ±90°. |
| WW-EC1 / EC3 / EC5 | Extension cable | 1, 3 or 5 m with waterproof connectors. |
| CT-D512 | DMX512 controller | Offline SD playback or live control. |
| CT-AMP8 | Signal amplifier | 8-channel DMX amplification and isolation. |
